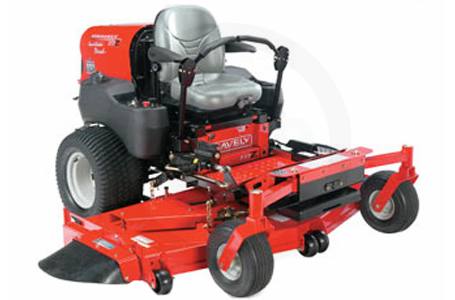

2009 Gravely 272H XDZ Kawasaki
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Want power? Want a lifetime machine? Want a perfect cut each and every time? Anything you want, the 272H XDZ has it, all in one incredible commercial unit. The Gravely 272H XDZ provides commercial landscapes and large estate home owners with a mower that reduces cutting time providing an incredible quality cut. Our engineers embraced technology like the Gravely exclusive X-Factor® deck and maintenance free Gravely XL spindles combined with one-of-a-kind features such as the exclusive hydraulic deck height control and ergonomic cockpit so that you can cut with precision and comfort.

    Specifications
    • Warranty: 2-year
    • Engine Manufacturer: Kawasaki® Twin Engine
    • Engine Power: 31 hp
    • Drive System: Hydrostatic
    • Fuel Tank: 13 gal. (49 l)
    • Ground Speed (Forward/Rev): 13 mph/6 mph
    • Starter: Electric
    • Deck Material: 7 ga
    • Deck Construction: Welded
    • Number of spindles: 3
    • Blade Tip Speed: 18,000 fpm
    • Spindle Material: Ductile Cast Iron
    • Spindle Shaft: 1 in. Steel
    • Spindle Bearings: Sealed Ball Bearing
    • Deck Drive: Belt
    • Deck Engagement: Ogura 250 ft.-lb. Electric Clutch
    • Deck Lift System: Hydraulic
    • Cutting Width: 72 in.
    • Cutting Heights: 1 in.-5 in.
    • Cutting Positions: 17
    • Front Axle: Pivoting/Locking
    • Caster Tires: Ribbed 15 in. x 6-6 in.
    • Drive Tires: Turf 24 in. x 11.5-12 in.
    • Safety: ANSI
    • Hood: Yes
    • Headlights: Optional
    • Seat: High Back w/Full Suspension
    • Hour Meter: Standard
    • Length: 82 in.
    • Width: 75 in. w/o Chute
    • Height: 50 in.
    Drive Train System
    • Hydro-Gear® 21 cc pumps with shock valves
    • Hydro-Gear® 18 cubic in. high torque wheel motors
    • 250 ft.-lb. Ogura® clutch
    • Canister-style air cleaner
    • 13.0 mph fwd/6.0 mph rev
    X-Factor® Deck Design
    • 7-gauge fabricated and welded steel construction: 1/4 in. thick reinforcement plate at spindles
    • 5 in. deep airflow cut chamber
    • (3) Maintenance-free XL Spindles with cast iron housings
    • Hydraulic deck lift assist
    • Heavy-duty rubber discharge chute
    • Self-adjusting belt tensioning
    • Hardened steel blades
    Operator Ergonomics
    • Twin stick controls with dampeners to minimize fatigue
    • Flip-up handles for easy operator mounting and dismounting
    • Large diameter fuel cap for quick re-fueling
    Frame Design
    • Fully welded tubular steel
    • 2.0 in. X 2.0 in. X .188 in. steel tubing
    • Fixed/floating front axle
    Accessories
    • Snow Blade
    • Snowblower
    • Rotary Sweeper
    • Bagger Collection System
    • Electric Deck Lift Kit
    • Flextend™ Shoulder Support System
    • Foldable Rops
    • Hitch Kit
    • Light Kit
    • Mulching Kit
    • Striping Kit

    Specifications

    Engine
    Engine Manufacturer Kawasaki®
    Horse Power 31 hp
    Engine Type Kawasaki® Twin Engine
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: Ribbed 15 in. x 6-6 in.; Drive Tires: Turf 24 in. x 11.5-12 in.
    Fuel Capacity 13 gal. (49 l)
    Deck
    Deck Size 72 in.
    Discharge Type Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2009
    Manufacturer Gravely
    Model 272H XDZ Kawasaki
    Style Riding
    Deck
    Deck Size 72 in.
    Discharge Type Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki®
    Horse Power 31 hp
    Engine Type Kawasaki® Twin Engine
    Displacement
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: Ribbed 15 in. x 6-6 in.; Drive Tires: Turf 24 in. x 11.5-12 in.
    Fuel Capacity 13 gal. (49 l)
