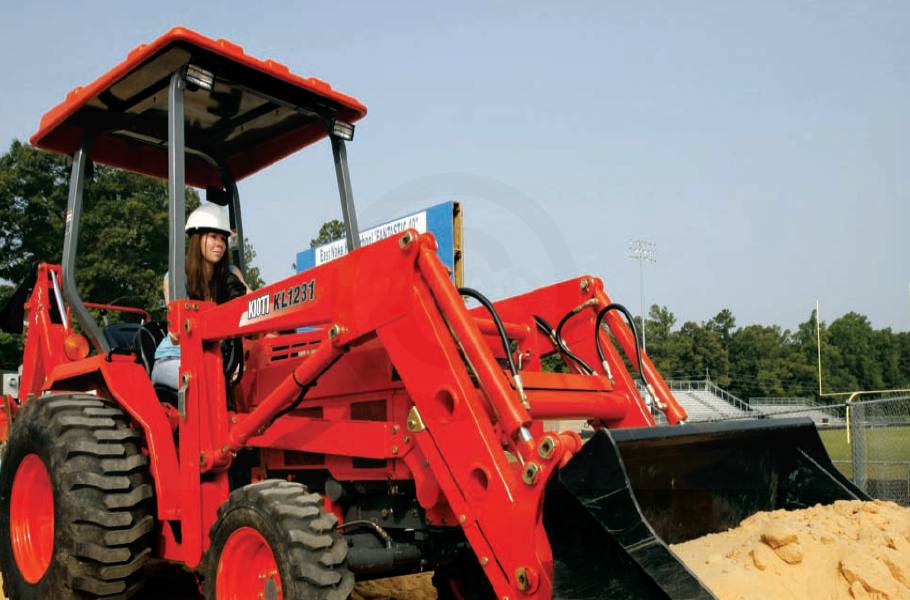

2009 Kioti LK30(TLB)
Request a Quote Financing Calculator Request a Brochure Financing Form

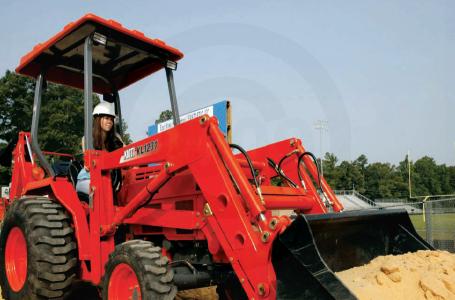

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Environmentally Friendly Engine: Kioti offers a quieter, smoother running diesel engine that meets or exceeds EPA and CARB regulations. Kioti engines have passed a stringent 2,000 hour durability test equivalent to 5,000 hours of normal operation.
  • Improved Engine Exhaust: The muffler/exhaust system is located inside the engine compartment for better visibility and a neater appearance.
  • 8x8 Transmission with shuttle: 8 forward and 8 reverse speeds along with shuttle shift is the perfect combination for those back and forth front-end loader operations. The synchronized main gearshift allows quick and easy shifting. The main transmission shifter is located to the side of the steering wheel providing more room and less obstruction on the center deck; increasing operator comfort and safety.
  • Bevel Gear Drive Front Axle/Power Steering: KIOTI uses a bevel gear drive system in all of its front axles. This gives a much shorter turning radius and a higher efficiency of power delivery to the front wheels. High efficiency power steering offers hours of comfortable, low fatigue operation.
  • High percentage power delivery
  • Instrument panel: The tachometer, hour meter, fuel and temperature gage, battery charge lamp and other instruments are well located in the panel for easy viewing. A fully featured instrument panel, adjustable seat, grab handles, conveniently positioned controls are designed for operator comfort and user-friendly operation.
  • 4WD with differential lock: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • Wet disc brake: Wet disc brakes offers quick and smooth braking operation and extended disc life.
  • Optional TBL Package: The optional TLB package includes a heavy-duty front-end loader and a guide-attachable backhoe.
  • More Hydraulic Power: A larger hydraulic pump provides more power, and hydraulically-powered implements operate faster.
  • Dual stage air filter cartridge: The dual stage air filter protects the engine from harmful dust and dirt and prolongs engine life.
  • Foldable ROPS: Fold-down roll bar makes it quick and easy to move in tight areas.
  • Optional Rear Mount Remote Hydraulic Ports
  • CAT I 3 Point hitch: The 3 Point hitch features an adjustable right side lift rod and top link which permits quick and easy implement attachment. The LK3054XS out lifts any other tractors in its class because of its heavier and longer body.
  • Adjustable Rear Wheel Tread(Ag tires only)
Key Uses
  • Engine Gross Power: 30 HP (22.4 Kw)
  • PTO Type: Live
  • Transmission Type: Constant Shuttle
Engine
  • Engine Model: TD1400B-1
  • Engine Gross Power: 28 hp (20.9 kw)
  • Rated Speed: 2,700 rpm
  • No. of Cylinder: 3
  • Fuel Type: Diesel
  • Aspiration: Natural
  • Displacement: 85.13 cu. in. (1395 cc)
  • Fuel Tank Capacity: 7.5 gal (28 l)
  • Pre-heating System: Glow plugs
Transmission
  • Transmission Type: Manual
  • Shuttle: Mechanical
  • Main Gear: Synchronized
  • No. of Travel Speed Forward / Reverse: 8F/8R
  • Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0.87 mph
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 12.48 mph
Power Take-Off
  • PTO Type Trans: Live w/ Dual Clutch
  • PTO Power: 24.5 hp (18.3 kw)
  • Rear PTO Speeds(1st): 540 rpm @ 2,610 Engine rpm
  • Rear PTO Speeds(2nd): 1,000 rpm @ 2,626 Engine rpm
  • Front PTO Speeds: Same as Engine Speed
Brakes and Clutch
  • Brakes: Wet Disc
  • Clutch: Dry Dual Plate
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 111.4 in. (2830 mm)
  • Width: 51.7 in. (1314 mm)
  • Height from Top of ROPS: 80.3 in. (2040 mm)
  • Height from Top of ROPS Folded: 80.3 in. (2040 mm)
  • From Top of the Highest Point: 80.3 in. (2040 mm)
  • Wheelbase: 64.6 in. (1640mm)
  • Ground Clearance: 10.8 in. (275 mm)
  • Front Tread Ag Tires - Min: 45.0 in. (1143 mm)
  • Front Tread Ag Tires - Max: 45.0 in. (1143 mm)
  • Rear Tread Ag Tires - Min: 40.2 in. (1020 mm)
  • Rear Tread Ag Tires - Max: 49.9 in. (1268 mm)
Hydraulics
  • Total Pump Flow: 10.0 gpm
3-Point Hitch
  • Standard Category (Optional Category): 1 (N/A)
  • Lift Capacity, 24 in aft of hitch: 1,764 lbs. (800 kg)
  • Control Type: Position
Weight
  • Weight w/ Ag Tires w/ ROPS: 2,974 lbs. (1349 kg)
Standard Equipment
  • Foldable ROPS with Seat belt
  • Hydraulic Power Steering
  • Differential LockFront and Rear PTO
  • Wet Disc BrakesHyd
  • Pump w/ Diverting Block
  • Hand & Foot Throttles
  • Adjustable Drawbar
  • Adjustable Seat
  • Headlights
  • Safety Lights
  • Safety Start Switch
Optional Equipment
  • Front Weights
  • Rear Wheel Weights
  • Rear Remote Hyd. Valve
  • Sunshade4-Post ROPS with TLB
  • Adjustable, Flip-over Seat with TLB
Instrument Panel
  • Tachometer with Hour Meter
  • Temperature Gauge
  • Fuel Gauge
  • Oil Pressure Indicator
  • Low Fuel Indicator
  • Glow Plug Indicator
  • Low Coolant Indicator
Tires
  • Ag1 4WD Front: 7 - 14/6
  • Ag1 4WD Rear: 11.2 - 24/6
  • Turf1 4WD Front: 25 x 8.50 -14
  • Turf1 4WD Rear: 13.6 - 16.1/4
  • Turf2 4WD Front: 27 x 8.50 - 15/4
  • Turf2 4WD Rear: 41 x 14.00 - 20/4
  • Ind1 4WD Front: 25 x 8.5 - 14/6
  • Ind1 4WD Rear: 15 - 19.5/6
Attachments
  • Front End Loaders: KL1230
  • Backhoes: KB2365, KB2375
Implements
  • Mowers: KMR03-60, KMR03-72
  • Tillers: KT03-47, KT03-55, KT03-59, KT03-65

Specifications

Engine
Engine Type TD1400B-1, 3 Cylinder
Horsepower 28 hp (20.9 kw)
PTO HP 24.5 hp (18.3 kw)
Rated RPM 2,700 rpm
Specifications
Wheelbase 64.6 in. (1640 mm)
Height 80.3 in. (2040 mm)
Width 51.7 in. (1314 mm)
Weight 2,974 lbs (1349 kg)
Ground Clearance 10.8 in. (275 mm)
Tire Size Ag1 4WD Front: 7 - 14/6; Ag1 4WD Rear: 11.2 - 24/6; Turf1 4WD Front: 25 x 8.50 -14; Turf1 4WD Rear: 13.6 - 16.1/4; Turf2 4WD Front: 27 x 8.50 - 15/4; Turf2 4WD Rear: 41 x 14.00 - 20/4; Ind1 4WD Front: 25 x 8.5 - 14/6; Ind1 4WD Rear: 15 - 19.5/6
General
Fuel System Diesel
Fuel Capacity 7.5 gal (28 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 10.0 gpm
Drive Type Constant Shuttle

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model LK30(TLB)
Style Compact
Engine
Engine Manufacturer
Engine Type TD1400B-1, 3 Cylinder
Horsepower 28 hp (20.9 kw)
PTO HP 24.5 hp (18.3 kw)
Rated RPM 2,700 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 7.5 gal (28 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 10.0 gpm
Drive Type Constant Shuttle
Specifications
Wheelbase 64.6 in. (1640 mm)
Height 80.3 in. (2040 mm)
Width 51.7 in. (1314 mm)
Weight 2,974 lbs (1349 kg)
Ground Clearance 10.8 in. (275 mm)
Tire Size Ag1 4WD Front: 7 - 14/6; Ag1 4WD Rear: 11.2 - 24/6; Turf1 4WD Front: 25 x 8.50 -14; Turf1 4WD Rear: 13.6 - 16.1/4; Turf2 4WD Front: 27 x 8.50 - 15/4; Turf2 4WD Rear: 41 x 14.00 - 20/4; Ind1 4WD Front: 25 x 8.5 - 14/6; Ind1 4WD Rear: 15 - 19.5/6
