2009 Kioti CK20S
Request a Quote Financing Calculator Request a Brochure Financing Form

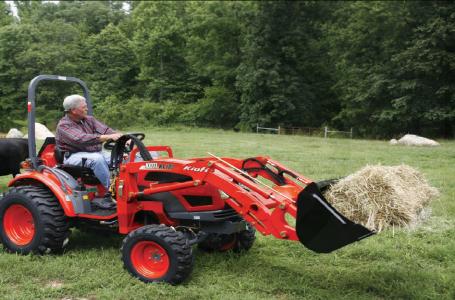

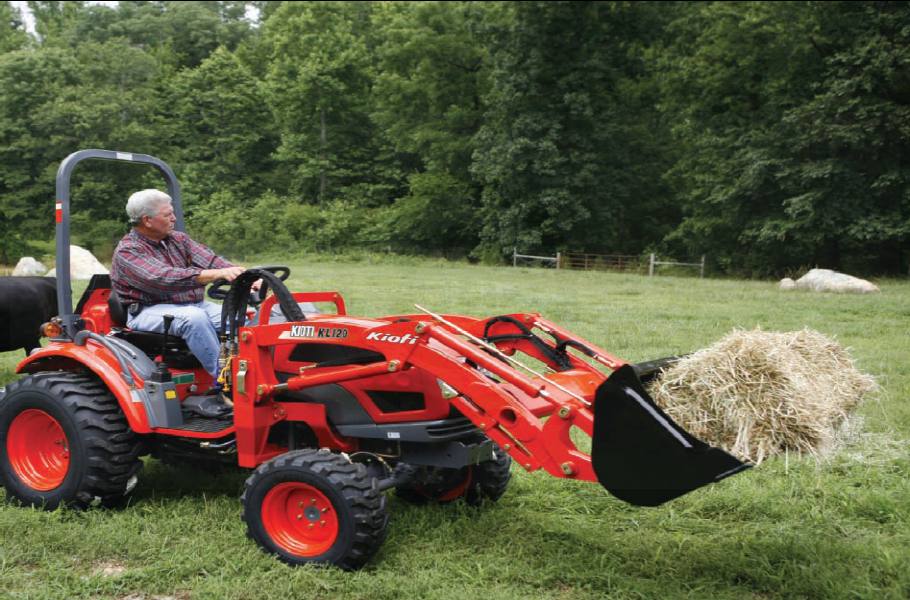

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Distinctive Hood and Fender Design: The newly designed hood and fender add distinctive lines to the CK Series tractors.
  • Environmentally Friendly Engine
  • High Capacity Hydraulic Pump: To better handle the increased horsepower of the CK25HST, it has been equipped with a performance proven, heavy duty HST drive unit. With the KIOTI HST drive system your hands remain free for steering and implement control.
  • Power Steering: The high efficiency power steering offers hours of comfortable, low fatigue operation.
  • Comfortable Seat with Suspension: With a high quality adjustable seat with suspension, the user enjoys a comfortable and smooth ride. The seat belt is retractable.
  • Rear PTO: Rear and mid PTO are standard on CK20/CK20HST tractors. You can select the rear or mid PTO separately or simultaneously. This allows the use of various implements, including a mid-mount mower.
  • Four Wheel Drive: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • Differential Lock: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • MLS (Mita Load Sensing) Control Valve: The MLS value allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.
  • Single Lever Joy Stick - Standard: The operation of the front-end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free floatation over the ground surface.
  • Heavy Duty Front Axle: The heavy duty front axle performs well in tough working conditions.
  • Foldable ROPS: Fold-down roll bar makes it quick and easy to move in tight areas.
  • Simple Maintenance (Open Hood): Convenient removable engine panels and front hood allow easy access for daily service checks and maintenance.
  • Air Filter: The air filter cartridge protects the engine from the harmful particles and prolongs the life of the engine.
  • Instrument Panel: The tachometer, hour meter, fuel and temperature gage, battery charge lamp and other instruments are well located in the panel for easy viewing. A fully featured instrument panel, adjustable seat, grab handles, conveniently positioned controls are designed for operator comfort and user-friendly operation.
  • Suspended Clutch and Brake Pedals: All CK series tractors feature suspended brake and clutch pedals to maximize the operator platform for ease of movement by providing more space.
  • Parking Brake and Cruise Control Levers: Conveniently located parking brake (red lever) and cruise control (yellow lever) levers are in easy reach of the operator. Cruise control is only available on the CK25 HST model.
  • Engine Throttle: Operator can control engine throttle with either the conveniently located hand lever or the foot accelator pedal. The foot accelator pedal is only available on the CK25 gear tractor.
  • Main Shift Lever (Gear drive only)
  • Range Selector: The CK25 offers a high and low transmission. The selector is in easy reach of the operator's free hand.
  • Fuel Filter: The fuel filter is conveniently located for ease of maintenance.
  • Position Control Lever: KIOTI's position control lever provides for the smooth operation of the 3-point hitch, is designed to allow for an infinite number of position heights, and comes with a convenient stop for applications that require a fixed lift point.
  • Fuel Tank: High capacity (26.5 gallon) of fuel tank can make long lasting work without refueling.
  • PTO Cover: The PTO safety shield helps protect the operator from PTO driven implements.
  • 3 point hitch: With an adjustable right side lift rod and top link, you can easily attach implements. The LB1914 out lifts any other tractors in its class because of its heavier and longer body.
  • Wet Disk Brakes: Wet disc brakes offer quick and smooth braking operation and extended disc life.
Engine
  • Engine Model: 3C100A
  • Engine Gross Power: 22 HP (16.4 Kw)
  • Rated Speed: 2,800 rpm
  • No. of Cylinder: 3
  • Fuel Type: Diesel
  • Aspiration: Natural
  • Displacement: 61.45 cu.in. (1007 cc)
  • Fuel Tank Capacity: 5.28 gal (20 l)
  • Pre-heating System: Glow plugs
Transmission
  • Transmission Type: Manual
  • Main Gear: Syncronized 1st & Reverse
  • No. of Travel Speed Forward / Reverse: 6F/2R
  • Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0.68 mph
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 10.09 mph
Power Take-Off
  • PTO Type Trans: Trans.
  • PTO Power: 17.1HP (12.8 Kw)
  • Rear PTO Speeds (1st): 540 rpm @ 2,646 Engine rpm
  • Mid PTO Speeds: 2,000 rpm @ 2,706 Engine rpm
  • Front PTO Speeds: Same as Engine Speed
Brakes and Clutch
  • Brakes: Wet Disc
  • Clutch: Dry Single Plate
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 105.7 in. (2684 mm)
  • Width: 44.1 in. (1121 mm)
  • Height from Top of ROPS: 86.0 in. (2185 mm)
  • From Top of the Highest Point: 77.5 in. (1970 mm)-ROPS
  • Wheelbase: 57.9 in. (1470 mm)
  • Ground Clearance: 12.2 in. (310 mm)
  • Front Tread Ag Tires - Min: 35.8 in. (910 mm)
  • Front Tread Ag Tires - Max: 35.8 in. (910 mm)
  • Rear Tread Ag Tires - Min: 35.0 in. (890 mm)
  • Rear Tread Ag Tires - Max: 36.8 in. (935 mm)
  • Turning Radius w/ Brake: 90 in. (2300 mm)
  • Turning Radius w/o Brake: 96 in. (2430 mm)
Hydraulics
  • Total Pump Flow: 7.66 gpm
  • Power Steering Pump Capacity: Hydrostatic Power Steering
3-Point Hitch
  • Lift Capacity, 24 in. aft of hitch: 1,109 lbs. (503 kg)
  • Control Type: Position
Weight
  • Weight w/ Ag Tires w/ ROPS: 2,125 lbs. (964 kg)
Standard Equipment
  • ROPS with Seat belt
  • Power Steering
  • Differential Lock
  • Front and Rear PTO
  • Wet Disc Brakes
  • Hyd. Pump/Front hydraulic Block
  • Hand Throttles
  • Foot Throttles (CK20S)
  • Removable Drawbar
  • Adjustable Seat
  • Headlights
  • Safety Lights
  • HST (CK20S HST)
  • Cruise Control (CK20HST)
  • Single lever Joystick Control Valve
  • Cup holder
Optional Equipment
  • Front Weight / Rear Wheel Weights
  • Rear Work Light
  • Single Remote Hyd. Valve
  • Foldable ROPS
  • Mid PTO
  • Sunshade
Instrument Panel
  • Tachometer with Hour Meter
  • Temperature Gauge Fuel Gauge
  • Oil Pressure Indicator
  • Low Fuel Indicator
  • Glow Plug Indicator
  • Low Coolant Indicator
Tires
  • Ag1 4WD Front: 6 - 12/4
  • Ag1 4WD Rear: 9.5 - 16/6
  • Turf1 4WD Front: 23 x 8.50 -12/4
  • Turf1 4WD Rear: 33 x 12.5 - 16.5
  • Turf2 4WD Rear: 33 x 12.5 - 16.5
  • Ind1 4WD Front: 23 x 8.50 - 12/4
  • Ind1 4WD Rear: 12 - 16.5
Attachments
  • Front End Loaders: KL120
  • Backhoes: KB2365, KB2465
Implements
  • Mowers: KMR03-48, KMR03-60, KMR03-60MM
  • Tillers: KT03-47, KT03-55

Specifications

Engine
Engine Type 3C100A
Horsepower 22 HP (16.4 Kw)
PTO HP 17.1HP (12.8 Kw)
Rated RPM 2,800 rpm
Specifications
Wheelbase 57.9 in. (1470 mm)
Height 86.0 in. (2185 mm)
Width 44.1 in. (1121 mm)
Weight 2,125 lbs. (964 kg)
Ground Clearance 12.2 in. (310 mm)
Tire Size Ag1 4WD Front: 6 - 12/4; Ag1 4WD Rear: 9.5 - 16/6; Turf1 4WD Front: 23 x 8.50 -12/4; Turf1 4WD Rear: 33 x 12.5 - 16.5; Turf2 4WD Rear: 33 x 12.5 - 16.5; Ind1 4WD Front: 23 x 8.50 - 12/4; Ind1 4WD Rear: 12 - 16.5
General
Fuel System Diesel
Fuel Capacity 5.28 gal (20 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 7.66 gpm
Drive Type Manual

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model CK20S
Style Compact
Engine
Engine Manufacturer
Engine Type 3C100A
Horsepower 22 HP (16.4 Kw)
PTO HP 17.1HP (12.8 Kw)
Rated RPM 2,800 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 5.28 gal (20 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 7.66 gpm
Drive Type Manual
Specifications
Wheelbase 57.9 in. (1470 mm)
Height 86.0 in. (2185 mm)
Width 44.1 in. (1121 mm)
Weight 2,125 lbs. (964 kg)
Ground Clearance 12.2 in. (310 mm)
Tire Size Ag1 4WD Front: 6 - 12/4; Ag1 4WD Rear: 9.5 - 16/6; Turf1 4WD Front: 23 x 8.50 -12/4; Turf1 4WD Rear: 33 x 12.5 - 16.5; Turf2 4WD Rear: 33 x 12.5 - 16.5; Ind1 4WD Front: 23 x 8.50 - 12/4; Ind1 4WD Rear: 12 - 16.5

Current Promotions

There are currently no promotions available for this product.
