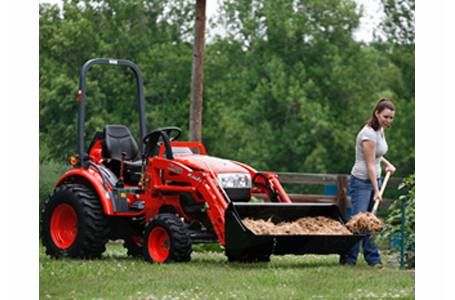

2009 Kioti CK20S HST
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Distinctive Hood and Fender Design: The newly designed hood and fender add distinctive lines to the CK Series tractors.
  • Environmentally Friendly Engine
  • High Capacity Hydraulic Pump: To better handle the increased horsepower of the CK25HST, it has been equipped with a performance proven, heavy duty HST drive unit. With the KIOTI HST drive system your hands remain free for steering and implement control.
  • Power Steering: The high efficiency power steering offers hours of comfortable, low fatigue operation.
  • Cruise Control: The cruise control on the HST can be easily set with a simple sliding hand control. This is a must when spending long hours on the job.
  • Hydrostatic Transmission: To better handle the increased horsepower of the CK20HST, it has been equipped with a performance proven, heavy duty HST drive unit. A single pedal controls traveling speed and direction. Changing between forward and reverse is done without clutching or hand shifting. With the KIOTI HST drive system your hands remain free for steering and implement control.
  • Comfortable Seat with Suspension: With a high quality adjustable seat with suspension, the user enjoys a comfortable and smooth ride. The seat belt is retractable.
  • Rear PTO: Rear and mid PTO are standard on CK20/CK20HST tractors. You can select the rear or mid PTO separately or simultaneously. This allows the use of various implements, including a mid-mount mower.
  • Differential Lock: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • Four Wheel Drive: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • MLS (Mita Load Sensing) Control Valve: The MLS value allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.
  • Heavy Duty Front Axle: The heavy duty front axle performs well in tough working conditions.
  • Simple Maintenance (Open Hood): Convenient removable engine panels and front hood allow easy access for daily service checks and maintenance.
  • Air Filter: The air filter cartridge protects the engine from the harmful particles and prolongs the life of the engine.
  • Instrument Panel: The tachometer, hour meter, fuel and temperature gage, battery charge lamp and other instruments are well located in the panel for easy viewing. A fully featured instrument panel, adjustable seat, grab handles, conveniently positioned controls are designed for operator comfort and user-friendly operation.
  • Suspended Clutch and Brake Pedals: All CK series tractors feature suspended brake and clutch pedals to maximize the operator platform for ease of movement by providing more space.
  • Parking Brake and Cruise Control Levers: Conveniently located parking brake (red lever) and cruise control (yellow lever) levers are in easy reach of the operator. Cruise control is only available on the CK25 HST model.
  • Engine Throttle: Operator can control engine throttle with either the conveniently located hand lever or the foot accelator pedal. The foot accelator pedal is only available on the CK25 gear tractor.
  • Range Selector: The CK25 offers a high and low transmission. The selector is in easy reach of the operator's free hand.
  • Fuel Filter: The fuel filter is conveniently located for ease of maintenance.
  • Position Control Lever: KIOTI's position control lever provides for the smooth operation of the 3-point hitch, is designed to allow for an infinite number of position heights, and comes with a convenient stop for applications that require a fixed lift point.
  • Fuel Tank: High capacity (26.5 gal.) of fuel tank can make long lasting work without refueling.
  • PTO Cover: The PTO safety shield helps protect the operator from PTO driven implements.
  • HST Pedal: HST provides a single pedal that controls traveling speed and direction and clutch-free forward and reverse movement which allows the operator to use hands for steering and implement control.
  • Single Lever Joy Stick - Standard: The operation of the front-end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free floatation over the ground surface.
  • Foldable ROPS: Fold-down roll bar makes it quick and easy to move in tight areas.
  • 3 point hitch: With an adjustable right side lift rod and top link, you can easily attach implements. The LB1914 out lifts any other tractors in its class because of its heavier and longer body.
  • Wet Disk Brakes: Wet disc brakes offer quick and smooth braking operation and extended disc life.
Engine
  • Engine Model: 3C100A
  • Engine Gross Power: 22 HP (16.4 Kw)
  • Rated Speed: 2,800 rpm
  • No. of Cylinder: 3
  • Fuel Type: Diesel
  • Aspiration: Natural
  • Displacement: 61.45 cu.in. (1007 cc)
  • Fuel Tank Capacity: 5.28 gal (20 l)
  • Pre-heating System: Glow plugs
Transmission
  • Transmission Type: Hydrostatic
  • No. of Travel Speed Forward / Reverse: INF. 2 Range
  • Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0.1 mph
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 9.3 mph
Power Take-Off
  • PTO Type Trans: Live
  • PTO Power: 16.2 HP (12.1 Kw)
  • Rear PTO Speeds (1st): 540 rpm @ 2,646 Engine rpm
  • Mid PTO Speeds: 2,000 rpm @ 2,706 Engine rpm
  • Front PTO Speeds: Same as Engine Speed
Brakes and Clutch
  • Brakes: Wet Disc
  • Clutch: Dry Single Plate
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 105.7 in. (2,684 mm)
  • Width: 44.1 in. (1,121 mm)
  • Height from Top of ROPS: 86.0 in. (2,185 mm)
  • From Top of the Highest Point: 77.5 in. (1,970 mm)-ROPS
  • Wheelbase: 57.9 in. (1,470 mm)
  • Ground Clearance: 12.2 in. (310 mm)
  • Front Tread Ag Tires - Min: 35.8 in. (910 mm)
  • Front Tread Ag Tires - Max: 35.8 in. (910 mm)
  • Rear Tread Ag Tires - Min: 35.0 in.E (890 mm)
  • Rear Tread Ag Tires - Max: 36.8 in.E (935 mm)
  • Turning Radius w/ Brake: 90 in. (2,300 mm)
  • Turning Radius w/o Brake: 96 in. (2,430 mm)
Hydraulics
  • Total Pump Flow: 7.66 gpm
  • Power Steering Pump Capacity: Hydrostatic Power Steering
3-Point Hitch
  • Standard Category (Optional Category): 1 (N/A)
  • Lift Capacity, 24 in. aft of hitch: 1,109 lbs. (503 kg)
  • Control Type: Position
Weight
  • Weight w/ Ag Tires w/ ROPS: 2,138 lbs (907 kg)
Standard Equipment
  • ROPS with Seat belt
  • Power Steering
  • Differential Lock
  • Front and Rear PTO
  • Wet Disc Brakes
  • Hyd. Pump/Front hydraulic Block
  • Hand Throttles
  • Foot Throttles (CK20S)
  • Removable Drawbar
  • Adjustable Seat
  • Headlights
  • Safety Lights
  • HST (CK20S HST)
  • Cruise Control (CK20S HST)
  • Single lever Joystick & Control Valve
Optional Equipment
  • Front Weight / Rear Wheel Weights
  • Rear Work Light
  • Single Remote Hyd. Valve
  • Foldable ROPS
  • Mid PTO
  • Sunshade
Instrument Panel
  • Tachometer with Hour Meter
  • Temperature Gauge
  • Fuel Gauge
  • Oil Pressure Indicator
  • Low Fuel Indicator
  • Glow Plug Indicator
  • Low Coolant Indicator
Tires
  • Ag1 4WD Front: 6 - 12
  • Ag1 4WD Rear: 9.5 - 16
  • Turf1 4WD Front: 24 x 8.50 - 12/4
  • Turf1 4WD Rear: 33 x 12.5 - 16.5
  • Ind1 4WD Front: 24 x 8.50 - 12/4
  • Ind1 4WD Rear: 12 - 16.5
Attachments
  • Front End Loaders: KL120
  • Backhoes: KB2365
Implements
  • Mowers: KMR03-48, KMR03-60, KMR03-60MM
  • Tillers: KT03-47, KT03-55

Specifications

Engine
Engine Type 3C100A
Horsepower 22 HP (16.4 Kw)
PTO HP 16.2 HP (12.1 Kw)
Rated RPM 2800 rpm
Specifications
Wheelbase 57.9 in. (1,470 mm)
Height 86.0 in. (2185 mm)
Width 44.1 in. (1,121 mm)
Weight 2,138 lbs. (907 kg)
Ground Clearance 12.2 in. (310 mm)
Tire Size Ag1 4WD Front: 6 - 12; Ag1 4WD Rear: 9.5 - 16; Turf1 4WD Front: 24 x 8.50 - 12/4; Turf1 4WD Rear: 33 x 12.5 - 16.5; Ind1 4WD Front: 24 x 8.50 - 12/4; Ind1 4WD Rear: 12 - 16.5
General
Fuel System Diesel
Fuel Capacity 5.28 gal. (20 l)
Transmission Hydrostatic
Brakes Wet Disc
Hydraulics Total Pump Flow: 7.66 gpm
Drive Type Hydrostatic

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model CK20S HST
Style Compact
Engine
Engine Manufacturer
Engine Type 3C100A
Horsepower 22 HP (16.4 Kw)
PTO HP 16.2 HP (12.1 Kw)
Rated RPM 2800 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 5.28 gal. (20 l)
Transmission Hydrostatic
Brakes Wet Disc
Hydraulics Total Pump Flow: 7.66 gpm
Drive Type Hydrostatic
Specifications
Wheelbase 57.9 in. (1,470 mm)
Height 86.0 in. (2185 mm)
Width 44.1 in. (1,121 mm)
Weight 2,138 lbs. (907 kg)
Ground Clearance 12.2 in. (310 mm)
Tire Size Ag1 4WD Front: 6 - 12; Ag1 4WD Rear: 9.5 - 16; Turf1 4WD Front: 24 x 8.50 - 12/4; Turf1 4WD Rear: 33 x 12.5 - 16.5; Ind1 4WD Front: 24 x 8.50 - 12/4; Ind1 4WD Rear: 12 - 16.5
