2009 Kioti CK25
Request a Quote Financing Calculator Request a Brochure Financing Form

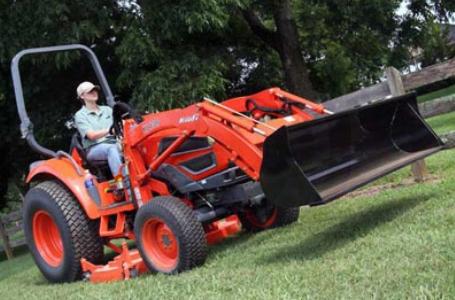

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Distinctive Hood and Fender Design: The newly designed hood and fender add distinctive lines to the CK Series tractors.
  • Environmentally Friendly Engine: The optimized combustion diesel engine is environmentally friendly and meets or exceeds EPA, CARB, and EEC regulations. It supplies a large output; offers low fuel consumption, excellent balance system, and greater durability; and creates less noise and low vibration.
  • High Capacity Hydraulic Pump: The high capacity, efficient tandem hydraulic pump gives you smoother handling in heavy duty working conditions and helps to reduce the fatigue of the user.
  • Power Steering: The high efficiency power steering offers hours of comfortable, low fatigue operation.
  • Comfortable Seat with Suspension: With a high quality adjustable seat with suspension, the user enjoys a comfortable and smooth ride. The seat belt is retractable.
  • Rear PTO: Rear and mid PTO are standard on CK20/CK20HST tractors. You can select the rear or mid PTO separately or simultaneously. This allows the use of various implements, including a mid-mount mower.
  • Four Wheel Drive with Differential Lock: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • MLS (Mita Load Sensing) Control Valve: The MLS value allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.
  • Single Lever Joy Stick - Standard: The operation of the front-end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free floatation over the ground surface.
  • Foldable ROPS: A fold-down roll bar makes it quick and easy to move in a low clearance areas.
  • 3 Point Hitch: With an adjustable right side lift rod and top link, you can easily attach implements.
  • Adjustable Rear Wheel Tread (Ag tires only): The adjustable rear wheel tread allows you to control the rear wheel tread easily and to work in various working conditions.
  • Heavy Duty Front Axle: The heavy duty front axle performs well in tough working conditions.
  • Simple Maintenance (Open Hood): Convenient removable engine panels and front hood allow easy access for daily service checks and maintenance.
  • Air Filter: The air filter cartridge protects the engine from the harmful particles and prolongs the life of the engine.
  • Instrument Panel: The tachometer, hour meter, fuel and temperature gage, battery charge lamp and other instruments are well located in the panel for easy viewing.
  • Suspended Clutch and Brake Pedals: All CK series tractors feature suspended brake and clutch pedals to maximize the operator platform for ease of movement by providing more space.
  • Parking Brake and Cruise Control Levers: Conveniently located parking brake (red lever) and cruise control (yellow lever) levers are in easy reach of the operator. Cruise control is only available on the CK25 HST model.
  • Engine Throttle: Operator can control engine throttle with either the conveniently located hand lever or the foot accelator pedal. The foot accelator pedal is only available on the CK25 gear tractor.
  • Range Selector: The CK25 offers a high and low transmission. The selector is in easy reach of the operator's free hand.
  • Fuel Filter: The fuel filter is conveniently located for ease of maintenance.
  • Position Control Lever: KIOTI's position control lever provides for the smooth operation of the 3-point hitch, is designed to allow for an infinite number of position heights, and comes with a convenient stop for applications that require a fixed lift point.
  • Fuel Tank: The fuel tank's location behind the operator station is convenient for refueling.
  • Flip-up PTO Cover: The PTO safety shield helps protect the operator from PTO driven implements.
  • Multiple Position Stabilizer: The multiple position stabilizer adjusts lift arms to a wide range of attachments and allows for easy adjustments based on the job at hand.
  • Wet Disk Brakes: Wet disc brakes offer quick and smooth braking operation and extended disc life.
Engine
  • Engine Model: TD1300LXA
  • Engine Gross Power: 25 HP (18.7 Kw)
  • Rated Speed: 2,600 rpm
  • No. of Cylinder: 3
  • Fuel Type: Diesel
  • Aspiration: Natural
  • Displacement: 79.3 cu.in. (1,299 cc)
  • Fuel Tank Capacity: 7.9 gal. (30 l)
  • Pre-heating System: Glow plugs
Transmission
  • Transmission Type: Manual
  • Shuttle: Synchronized
  • Main Gear: Synchronized
  • No. of Travel Speed Forward / Reverse: 8F8R
  • Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0.93 mph
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 14.22 mph
Power Take-Off
  • PTO Type: Trans Live w/ Dual Clutch
  • PTO Power: 19 HP (14.2kw)
  • Rear PTO Speeds(1st): 540 rpm
  • Rear PTO Speeds(2nd): 1,000 rpm - Optional
  • Mid PTO Speeds: 2,000 rpm - Optional
  • Front PTO Speeds: Same as Engine Speed
Brakes and Clutch
  • Brakes: Wet Disc
  • Clutch: Dry Dual Plate
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 122.2 in. (3103 mm)
  • Width: 54.6 in. (1387 mm)
  • Height from Top of ROPS: 96.8 in. (2460 mm)
  • From Top of the Highest Point: 96.8 in. (2460 mm)-ROPS
  • Wheelbase: 66.1 in. (1680 mm)
  • Ground Clearance: 13.82 in. (351 mm)
  • Front Tread Ag Tires - Min: 43.5 in. (1105 mm)
  • Front Tread Ag Tires - Max: 43.5 in. (1105 mm)
  • Rear Tread Ag Tires - Min: 38.2 in. (970 mm)
  • Rear Tread Ag Tires - Max: 51.3 in. (1302 mm)
  • Turning Radius w/ Brake: 9.5 ft. (2.9 m)
  • Turning Radius w/o Brake: 11.5 ft. (3.5 m)
Hydraulics
  • Total Pump Flow: 12.7 gpm
  • Power Steering Pump Capacity: Hydrostatic Power Steering
3-Point Hitch
  • Standard Category (Optional Category): Cat. I (N/A)
  • Lift Capacity, 24" aft of hitch: 1,764 lbs. (800 kg)
  • Control Type: Position
Weight
  • Weight w/ Ag Tires w/ ROPS: 3,042 lbs. (1,380 kg)
Standard Equipment
  • Foldable (90 & 45 Degree positions) ROPS
  • Seat belt
  • Flip-up PTO guard
  • Safety start switch
  • Swinging draw bar
  • Front & Rear PTO
  • Dry dual clutch
  • Bevel gear type front axle
  • Rear differential lock
  • Telescopic 3 point hitch ends
  • Hydraulic power steering
  • Adjustable reclining seat with adjustable spring suspension
  • Tilt steering
  • Single lever Joy stick Valve for front end loader
  • Telescopic stabilizer
  • Adjustable lift rod with bevel gear crank
  • Cup holder
  • 3pt hitch speed adjuster
  • Manual engine stop knob
Optional Equipment
  • Single & dual remote hydraulic valve
  • Front suit case weight
  • Rear wheel weight
  • Sunshade
  • Mid PTO
  • Rear working light
Instrument Panel
  • Digital hour meter
  • Coolant temperature gauge
  • Electrical tachometer
  • Fuel gauge
  • Engine oil pressure warning light
  • High beam, flasher, direction indicators
  • Glow plug light
  • Battery charging warning light
  • Parking brake indicator
Tires
  • Ag1 4WD Front: 7-14
  • Ag1 4WD Rear: 11.2-24
  • Turf1 4WD Front: 27x8.50-15
  • Turf1 4WD Rear: 41x14.00-20
  • Ind1 4WD Front: 25x8.50-14
  • Ind1 4WD Rear: 15-19.5
Attachments
  • Front End Loaders: KL130
  • Backhoes: KB2365, KB2375, KB2475
Implements
  • Mowers: KMR03-60
  • Tillers: KT03-47, KT03-55, KT03-59

Specifications

Engine
Engine Type TD1300LXA
Horsepower 25 HP (18.7 Kw)
PTO HP 19 HP (14.2kw)
Rated RPM 2,600 rpm
Specifications
Wheelbase 66.1 in. (1680 mm)
Height 96.8 in. (2460 mm)
Width 54.6 in. (1387 mm)
Weight 3,042 lbs. (1,380 kg)
Ground Clearance 13.82 in. (351 mm)
Tire Size Ag1 4WD Front: 7-14; Ag1 4WD Rear: 11.2-24; Turf1 4WD Front: 27x8.50-15; Turf1 4WD Rear: 41x14.00-20; Ind1 4WD Front: 25x8.50-14; Ind1 4WD Rear: 15-19.5
General
Fuel System Diesel
Fuel Capacity 7.9 gal. (30 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 12.7 gpm
Drive Type Manual

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model CK25
Style Compact
Engine
Engine Manufacturer
Engine Type TD1300LXA
Horsepower 25 HP (18.7 Kw)
PTO HP 19 HP (14.2kw)
Rated RPM 2,600 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 7.9 gal. (30 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 12.7 gpm
Drive Type Manual
Specifications
Wheelbase 66.1 in. (1680 mm)
Height 96.8 in. (2460 mm)
Width 54.6 in. (1387 mm)
Weight 3,042 lbs. (1,380 kg)
Ground Clearance 13.82 in. (351 mm)
Tire Size Ag1 4WD Front: 7-14; Ag1 4WD Rear: 11.2-24; Turf1 4WD Front: 27x8.50-15; Turf1 4WD Rear: 41x14.00-20; Ind1 4WD Front: 25x8.50-14; Ind1 4WD Rear: 15-19.5
