2009 Kioti CK27
Request a Quote Financing Calculator Request a Brochure Financing Form

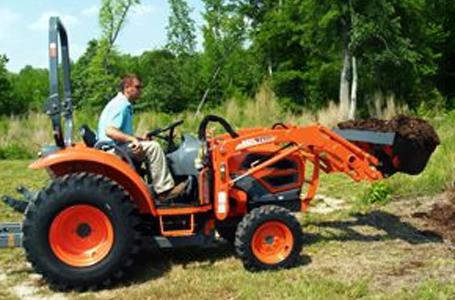

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Distinctive Hood and Fender Design: The newly designed hood and fender add distinctive lines to the CK Series tractors
  • Environmentally Friendly Engine
  • High Capacity Hydraulic Pump: To better handle the increased horsepower of the CK25HST, it has been equipped with a performance proven, heavy duty HST drive unit. With the KIOTI HST drive system your hands remain free for steering and implement control.
  • Power Steering: The high efficiency power steering offers hours of comfortable, low fatigue operation.
  • Comfortable Seat with Suspension: With a high quality adjustable seat with suspension, the user enjoys a comfortable and smooth ride. The seat belt is retractable.
  • Rear PTO: Rear and mid PTO are standard on CK20/CK20HST tractors. You can select the rear or mid PTO separately or simultaneously. This allows the use of various implements, including a mid-mount mower.
  • Four Wheel Drive with Differential Lock: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • MLS (Mita Load Sensing) Control Valve: The MLS value allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.
  • Single Lever Joy Stick - Standard: The operation of the front-end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free floatation over the ground surface.
  • Foldable ROPS: Fold-down roll bar makes it quick and easy to move in tight areas.
  • 3 Point Hitch: With an adjustable right side lift rod and top link, you can easily attach implements. The LB1914 out lifts any other tractors in its class because of its heavier and longer body.
  • Heavy Duty Front Axle: The heavy duty front axle performs well in tough working conditions.
  • Simple Maintenance (Open Hood): Convenient removable engine panels and front hood allow easy access for daily service checks and maintenance.
  • Air Filter: The air filter cartridge protects the engine from the harmful particles and prolongs the life of the engine.
  • Instrument Panel: The tachometer, hour meter, fuel and temperature gage, battery charge lamp and other instruments are well located in the panel for easy viewing. A fully featured instrument panel, adjustable seat, grab handles, conveniently positioned controls are designed for operator comfort and user-friendly operation.
  • Suspended Clutch and Brake Pedals: All CK series tractors feature suspended brake and clutch pedals to maximize the operator platform for ease of movement by providing more space.
  • Parking Brake and Cruise Control Levers: Conveniently located parking brake (red lever) and cruise control (yellow lever) levers are in easy reach of the operator. Cruise control is only available on the CK25 HST model.
  • Engine Throttle: Operator can control engine throttle with either the conveniently located hand lever or the foot accelator pedal. The foot accelator pedal is only available on the CK25 gear tractor.
  • Range Selector: The CK25 offers a high and low transmission. The selector is in easy reach of the operator's free hand.
  • Fuel Filter: The fuel filter is conveniently located for ease of maintenance.
  • Position Control Lever: KIOTI's position control lever provides for the smooth operation of the 3-point hitch, is designed to allow for an infinite number of position heights, and comes with a convenient stop for applications that require a fixed lift point.
  • Fuel Tank: High capacity (26.5 gal.) of fuel tank can make long lasting work without refueling.
  • Flip-up PTO Cover: The PTO safety shield helps protect the operator from PTO driven implements.
  • Multiple Position Stabilizer: The multiple position stabilizer adjusts lift arms to a wide range of attachments and allows for easy adjustments based on the job at hand.
Engine
  • Engine Model: 3A139LWM
  • Engine Gross Power: 28 HP (20.9 Kw)

Specifications

Engine
Engine Type 3 Cyl., In-line Vertical, Water-cooled 4-cycle diesel engine
Horsepower 28 HP (20.9 Kw)
PTO HP 21.7 HP (16.2 Kw)
Rated RPM 2,600 rpm
Specifications
Wheelbase 66.1 in. (1680 mm)
Height 96.8 in. (2460mm)
Width 54.6 in. (1387 mm)
Weight 3,161 lbs. (1,434 kg)
Ground Clearance 13.82 in. (351 mm)
Tire Size Front AG. (Turf, Industrial): 7-14 (27x8.50-15, 25x8.50-14); Rear AG. (Turf, Industrial): 11.2-24 (41x14-20, 15-19.5)
General
Fuel Capacity 7.9 gal. (30 l)
Transmission Syncro shuttle
Brakes Wet Disc
Hydraulics 12.7 gpm (48.3 l/min)

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model CK27
Style Compact
Engine
Engine Manufacturer
Engine Type 3 Cyl., In-line Vertical, Water-cooled 4-cycle diesel engine
Horsepower 28 HP (20.9 Kw)
PTO HP 21.7 HP (16.2 Kw)
Rated RPM 2,600 rpm
Bore and Stroke
General
Fuel System
Fuel Capacity 7.9 gal. (30 l)
Transmission Syncro shuttle
Brakes Wet Disc
Hydraulics 12.7 gpm (48.3 l/min)
Drive Type
Specifications
Wheelbase 66.1 in. (1680 mm)
Height 96.8 in. (2460mm)
Width 54.6 in. (1387 mm)
Weight 3,161 lbs. (1,434 kg)
Ground Clearance 13.82 in. (351 mm)
Tire Size Front AG. (Turf, Industrial): 7-14 (27x8.50-15, 25x8.50-14); Rear AG. (Turf, Industrial): 11.2-24 (41x14-20, 15-19.5)
