2009 Kioti DK35SE HST
Request a Quote Financing Calculator Request a Brochure Financing Form

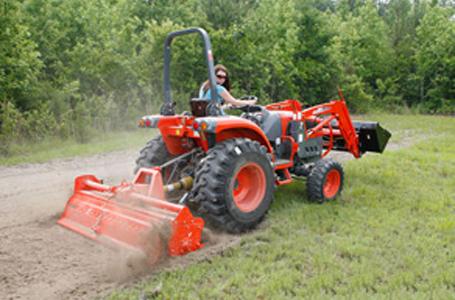

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Environmentally Friendly Engine
  • PTO Performance (540)
  • Independent PTO/AUTO PTO: Even while driving, various work can be done by the Independent PTO. The Auto PTO stops automatically when implement rises up to specific height. It also protects the tractor and implement and reduces noise/vibration.
  • 12x12 Synchronized Transmission: The fully synchronized shuttle and transmission (12X12) provides smooth and easy shifting on the move.
  • Hydraulic Port: For smooth operation of tillage tools without overloading the tractor or the implement, the draft sensing system automatically controls the lower link position to maintain the user selected draft setting.
  • Hydraulic Valve (D/T, Double Acting Valve): Detent valve is equipped to make Spray work easy by simple lever control
  • Power Steering: The high efficiency power steering offers hours of comfortable, low fatigue operation.
  • MLS Valve: The MLS value allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.
  • Flat Deck Design
  • Tilt Steering: To fit the required specifications of each user, the steering wheel is adjustable.
  • 3 Point Hitch: With an adjustable right side lift rod and top link, you can easily attach implements. The LB1914 out lifts any other tractors in its class because of its heavier and longer body.
  • Centralized Instrument Panel: On the centralized instrument panel, you can easily monitor engine/mechanical performance.
  • Lift Control Lever: User is able to conveniently attach and detach implements by using the lift cotrol lever.
  • Air Filter: The air filter cartridge protects the engine from the harmful particles and prolongs the life of the engine.
  • Multiple Position Stabilizer: The multiple position stabilizer adjusts lift arms to a wide range of attachments and allows for easy adjustments based on the job at hand.
  • Hydraulic 4WD: In comparison with manual type, 4WD Push Button allows you to engage 4WD while in operation.
  • Rear Implement Control Lever: The 3-point hitch can also be controlled from the ground at the rear of the tractor. Attaching implements is easier and safer with this control within easy reach.
  • Flip-up PTO Guard: The PTO guard flips up so you can install the implement's drive shaft with ease.
  • Foldable ROPS: Fold-down roll bar makes it quick and easy to move in tight areas.
Engine
  • Engine Model: 3B183LXH
  • Engine Gross Power: 38 HP (28.3 Kw)
  • Rated Speed: 2,600 rpm
  • No. of Cylinder: 3
  • Fuel Type: Diesel
  • Aspiration: Natural
  • Displacement: 111.43 cu.in. (1826 cc)
  • Fuel Tank Capacity: 11.9 gal. (45 l)
  • Pre-heating System: Glow Plugs
Transmission
  • Transmission Type: HST
  • No. of Travel Speed Forward / Reverse: 3 Range HST
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 16.0 mph
Power Take-Off
  • PTO Type Trans: Hydrostatic, Independent
  • PTO Power: 27 HP (20.1 Kw)
  • Rear PTO Speeds (1st): 540
  • Mid PTO Speeds: 2,000 rpm (Optional)
Brakes and Clutch
  • Brakes: Wet disc type
  • Clutch: Dry type single stage
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 129.1 in. (3280 mm)
  • Width: 61.6 in. (1565 mm)
  • Height from Top of ROPS: 93.1 in. (2365 mm)
  • Wheelbase: 69.5 in. (1767 mm)
  • Ground Clearance: 14.3 in. (365 mm)
  • Front Tread Ag Tires - Min: 49.1 in. (1248 mm)
  • Rear Tread Ag Tires - Min: 48.7 in. (1237 mm)
  • Rear Tread Ag Tires - Max: 53.0 in. (1347 mm)
  • Turning Radius w/ Brake: 9.3 ft. (2.85 m)
Hydraulics
  • Total Pump Flow: 15.2 gpm (57.8 l/min)
3-Point Hitch
  • Standard Category (Optional Category): Cat. I
  • Lift Capacity, 24" aft of hitch: 2,383 lbs. (1,081 kg)
  • Control Type: Position, Draft, Mixed Control
Weight
  • Weight w/ Ag Tires w/ ROPS: 3,915 lbs. (1,776 kg)
Standard Equipment
  • Telescopic 3 Point Hitch Ends
  • Telescopic Stabilizers
  • Crank Adjustable Lift Link
  • Creep Speed Gear(Factory Option/Mechanical)
  • One Lever Joy Stick For Loader Operation
  • Foldable ROPS with Seat Belt
  • Hydraulic Power Steering
  • Rear Differential Lock
  • Foot Throttles(Mechanical)
  • Removable Drawbar/Adjustable Seat
  • Head Lights/Safety Light
  • Tilt Steering Wheel
  • Oil Cooler(HST)
  • Wet Disc Brake
Optional Equipment
  • 2nd. Remote Hyd. Valve
  • Rear & Front Weights
  • Sunshade
  • Mid PTO
  • Trailer Electronic Outlet(7 Pin Socket)
Instrument Panel
  • Tachometer with Hour Meter
  • Fuel Gauge
  • Coolant Temp. Gauge
  • PTO Operation Indicator
  • Battery Charge lndicator
  • Low Oil Pressure Indicator
  • Glow Operation Indicator
  • 4WD Operation Indicator
  • Sub-Change Lever Position Indicator
  • Parking Brake Operation Indicator
  • Cruise Operation Indicator
Tires
  • Ag1 4WD Front: 7-16/6
  • Ag1 4WD Rear: 12.4-24/6
  • Turf1 4WD Front: 27x8.5-15/4
  • Turf1 4WD Rear: 41x14-20/4
  • Ind1 4WD Front: 27x10.5-15/4
  • Ind1 4WD Rear: 43x16-20/4
Attachments
  • Front End Loaders: KL351

Specifications

Engine
Engine Type 3 Cyl., In-line Vertical, Water-cooled 4-cycle diesel engine
Horsepower 38 HP (28.3 Kw)
PTO HP 27 HP (20.1 Kw)
Rated RPM 2,600 rpm
Specifications
Wheelbase 69.5 in. (1767 mm)
Height 93.1 in. (2365 mm)
Width 61.6 in. (1565 mm)
Weight 3,915 lbs. (1,776 kg)
Ground Clearance 14.3 in. (365 mm)
Tire Size Ag1 4WD Front: 7-16/6; Ag1 4WD Rear: 12.4-24/6; Turf1 4WD Front: 27x8.5-15/4; Turf1 4WD Rear: 41x14-20/4; Ind1 4WD Front: 27x10.5-15/4; Ind1 4WD Rear: 43x16-20/4
General
Fuel System Diesel
Fuel Capacity 11.9 gal. (45 l)
Transmission HST
Brakes Wet disc type
Hydraulics Total Pump Flow: 15.2 gpm (57.8 l/min)

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model DK35SE HST
Style Compact
Engine
Engine Manufacturer
Engine Type 3 Cyl., In-line Vertical, Water-cooled 4-cycle diesel engine
Horsepower 38 HP (28.3 Kw)
PTO HP 27 HP (20.1 Kw)
Rated RPM 2,600 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 11.9 gal. (45 l)
Transmission HST
Brakes Wet disc type
Hydraulics Total Pump Flow: 15.2 gpm (57.8 l/min)
Drive Type
Specifications
Wheelbase 69.5 in. (1767 mm)
Height 93.1 in. (2365 mm)
Width 61.6 in. (1565 mm)
Weight 3,915 lbs. (1,776 kg)
Ground Clearance 14.3 in. (365 mm)
Tire Size Ag1 4WD Front: 7-16/6; Ag1 4WD Rear: 12.4-24/6; Turf1 4WD Front: 27x8.5-15/4; Turf1 4WD Rear: 41x14-20/4; Ind1 4WD Front: 27x10.5-15/4; Ind1 4WD Rear: 43x16-20/4
