Products » Kioti » DK55
Model Quick Search

Call for Price
(325) 356-2552

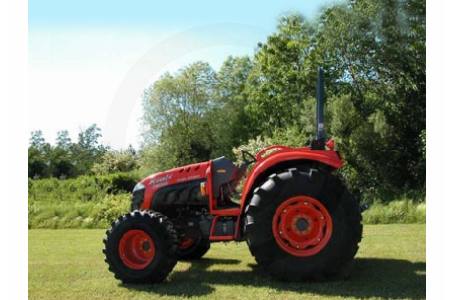

2009 Kioti DK55
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Deluxe Seat: Comfortable cushion, adjustable back, and fitted for any user, KIOTI's deluxe seat offers hours of comfort.
  • 4WD Push Button: 4 WD hydraulic operation can be done with the push of a button
  • Air conditioner/Heater: A combined heater & air conditioner system is appropriate for and durable in any weather conditions. The inner/outer converting device and filter gives you a pleasant ride.
  • High capacity steering: High steering capacity offers you convenient handling even when your tractor is equipped with industrial tires.
  • Environmentally Friendly Engine: The optimized combustion turbo diesel engine is environmentally friendly and meets or exceeds EPA, CARB, and EEC regulations. It supplies a large output; offers low fuel consumption, excellent balance system, and greater durability; and creates less noise and low vibration.
  • 12x12 Synchronized Transmission: The fully synchronized shuttle and synchronized transmission provides smooth and easy shifting on the move. The DK55 transmission features 12 forward and 12 reverse gears to handle all kinds of jobs.
  • Safe AUTO PTO: For added safety, the AUTO PTO function can be selected to automatically stop the PTO when the implement is raised by the control lever thus eliminating exposure to moving parts. A safety interlock prevents engine start when the PTO switch is left on.
  • PTO Performance: Safe and easy operation of the independent rear PTO is made possible with a hydraulic clutch. Two selectable PTO speeds (540/1000 RPM) power a wide range of implements. The engine crankshaft has a spline that will accept an optional front PTO.
  • Variable Lower Links: Lock the 3-point hitch in any position or adjust its lowering speed with the new adjustable MLS valve. Adjusting the hitch lowering speed enables the DK55 to accommodate virtually any implement.
  • Position control with Draft: For smooth operation of tillage tools without overloading the tractor or the implement, the draft sensing system automatically controls the lower link position to maintain the user selected draft setting.
  • Flip-Up PTO Guard: The PTO guard is easily lifted out of the way for easy drive shaft attachment.
  • Telescopic CAT I & II hitch: Implements are easily attached with telescopic lower links and stabilizers. Interchangeable CAT I and CAT II ends permit a wider variety of implements to be used. (CAT II - Standard, CAT I - Option)
  • Remote Hydraulic Ports (Rear): Two sets of hydraulic ports with quick-disconnect fittings are standard equipment. One circuit features a floating detent, the second circuit is detent only. A wide variety of hydraulically actuated and hydraulically driven implements can be used.
  • Auxiliary Lift Control: The 3-point hitch can also be controlled from the ground at the rear of the tractor. Attaching implements is easier and safer with this control within easy reach.
  • Deluxe Operator Station: The full-featured instrument panel, adjustable seat, tilt wheel, power steering, grab handles, wide step-through deck, and convenient controls are designed for operator comfort and user-friendly operation.
  • Full equipped Cab(DK55C): The DK55C features air conditioning, heating, windshield wiper/washer, roof vent, door props for ventilation, AM/FM cassette radio and many other convenient features.
  • Smart mid-mount hydraulics: Standard hydraulic couplers with joystick control provide for the quick and easy connection of a front-end loader.
  • Open Hood Design: KIOTI's unique hood design improves visibility and allows convenient service access. A simple release lever opens the hood, and side panels can be easily removed without tools.
  • Foldable ROPS: Fold-down roll bar makes it quick and easy to move in tight areas.
  • High efficiency air filter: High efficiency air filter with cyclone pre-cleaner canister is applied for maximum engine life.
  • Pre-Cleaner (cab models): A cyclone pre-cleaner is standard on the DK55 cab model. Its radial force captures harmful particles before they can enter the main filter and engine. This helps protect the engine when working in high-dust conditions.
  • Adjustable Rear Wheel Tread (Ag tires only): The adjustable rear wheel tread allows you to control the rear wheel tread easily and to work in various working conditions.
Engine
  • Engine Model: 4A220TLXB
  • Engine Gross Power: 54 HP (40.3 Kw)
  • Rated Speed: 2,600 rpm
  • No. of Cylinder: 4
  • Fuel Type: Diesel
  • Aspiration: Turbocharged
  • Displacement: 134.1 cu.in. (2197 cc)
  • Fuel Tank Capacity: 18 gal. (68 l)
  • Pre-heating System: Glow plugs
Transmission
  • Transmission Type: Manual
  • Shuttle: Synchronized
  • Main Gear: Synchronized
  • No. of Travel Speed Forward / Reverse: 12F/12R
  • Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0.29 mph
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 18.5 mph
Power Take-Off
  • PTO Type Trans: Hyd. Independent
  • PTO Power: 44.4 HP (32.6 Kw)
  • Rear PTO Speeds (1st): 540 rpm
  • Rear PTO Speeds (2nd): 1,000 rpm
  • Front PTO Speeds: Same as Engine Speed
Brakes and Clutch
  • Brakes: Wet Disc
  • Clutch: Dry Single Plate
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 128.6 in. (3266 mm)
  • Width: 69.3 in. (1760 mm)
  • Height from Top of ROPS: 106.5 in.
  • Height from Top of ROPS Cab: 104 in.
  • Height from Top of ROPS Folded: 85 1/2 in.
  • From Top of the Highest Point: 106.5 in. - ROPS
  • Wheelbase: 76.8 in. (1950 mm)
  • Ground Clearance: 17.5 in. (445 mm)
  • Front Tread Ag Tires - Min: 57.5 in. (1461mm)
  • Front Tread Ag Tires - Max: 57.5 in. (1461 mm)
  • Rear Tread Ag Tires - Min: 53.9 in. (1370 mm)
  • Rear Tread Ag Tires - Max: 61.6 in. (1564 mm)
  • Turning Radius w/ Brake: 110.4 in. (2805 mm)
  • Turning Radius w/o Brake: 145 in. (3685 mm)
Hydraulics
  • Total Pump Flow: 14.2 gpm
  • Main Pump Capacity: 9.9gpm (14.4 cc/rev)
  • Power Steering Pump Capacity: 4.3 gpm (6.3 cc/rev)
3-Point Hitch
  • Standard Category (Optional Category): 2(1)
  • Lift Capacity, 24 in. aft of hitch: 2,866 lbs. (1,300 kg)
  • Control Type: Position, Draft and Mixed
Weight
  • Weight w/ Ag Tires w/ ROPS: 4,685 lbs. (2,125 kg)
  • Weight w/ Ag Tires w/ Cab: 5,105 lbs. (2,316 kg)
Standard Equipment
  • Foldable ROPS with Seat belt
  • Hydraulic Power Steering
  • Differential Lock
  • Front PTO
  • 2 Speed Rear PTO
  • Wet Disc Brakes
  • Hyd. Pump w/ Hydraulic Block
  • Hand & Foot Throttles
  • Swing Drawbar
  • Adjustable Seat
  • Headlights
  • Safety Lights
  • Safety Start Switch
  • Creep Speed Gear
  • Rear Working Light
  • Dual Remote Hyd. Valve
  • Pre Cleaner (DK55C)
  • Flip up PTO Guard
  • Foot-operated Tilt Steering Wheel
  • Full Open Hood
Optional Equipment
  • Sunshade
Instrument Panel
  • Tachometer with Hour Meter
  • Tachometer Gauge
  • Fuel Gauge
  • Temperature Gauge
  • Oil Pressure Indicator
  • PTO Indicator
  • Low Fuel Indicator
  • Hydraulic Warning
  • Glow Plug Indicator
  • Separate Detector
  • Low Coolant Indicator
Tires
  • Ag1 4WD Front: 9.5 - 20/6
  • Ag1 4WD Rear: 14.9 - 28/6
  • Turf1 4WD Front: 29 x 12.5 x 15/6
  • Turf1 4WD Rear: 44 x 18 x 20/4
  • Ind1 4WD Front: 14 x 17.5/6
  • Ind1 4WD Rear: 18.4 x 24/8
Attachments
  • Front End Loaders: KL1595, KL551
  • Backhoes: KB2375, KB2385, KB2485
Implements
  • Mowers: KMR03-72, KMR03-84
  • Tillers: KT03-65, KT03-73

Specifications

Engine
Engine Type 4 Cyl., In-line Vertical, Water-cooled 4-cycle diesel engine
Horsepower 54 HP (40.3 Kw)
PTO HP 44.4 HP (32.6 Kw)
Rated RPM 2,600 rpm
Specifications
Wheelbase 76.8 in. (1950 mm)
Height 106.5 in.
Width 69.3 in. (1760 mm)
Weight Weight w/ Ag Tires w/ ROPS: 4,685 lbs. (2,125 kg); Weight w/ Ag Tires w/ Cab: 5,105 lbs. (2,316 kg)
Ground Clearance 17.5 in. (445 mm)
Tire Size Ag1 4WD Front: 9.5 - 20/6; Ag1 4WD Rear: 14.9 - 28/6; Turf1 4WD Front : 29 x 12.5 x 15/6; Turf1 4WD Rear: 44 x 18 x 20/4; Ind1 4WD Front: 14 x 17.5/6; Ind1 4WD Rear: 18.4 x 24/8
General
Fuel System Diesel
Fuel Capacity 18 gal. (68 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 14.2 gpm; Main Pump Capacity: 9.9 gpm (14.4 cc/rev); Power Steering Pump Capacity:4.3 gpm (6.3 cc/rev)

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model DK55
Style Compact
Engine
Engine Manufacturer
Engine Type 4 Cyl., In-line Vertical, Water-cooled 4-cycle diesel engine
Horsepower 54 HP (40.3 Kw)
PTO HP 44.4 HP (32.6 Kw)
Rated RPM 2,600 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 18 gal. (68 l)
Transmission Manual
Brakes Wet Disc
Hydraulics Total Pump Flow: 14.2 gpm; Main Pump Capacity: 9.9 gpm (14.4 cc/rev); Power Steering Pump Capacity:4.3 gpm (6.3 cc/rev)
Drive Type
Specifications
Wheelbase 76.8 in. (1950 mm)
Height 106.5 in.
Width 69.3 in. (1760 mm)
Weight Weight w/ Ag Tires w/ ROPS: 4,685 lbs. (2,125 kg); Weight w/ Ag Tires w/ Cab: 5,105 lbs. (2,316 kg)
Ground Clearance 17.5 in. (445 mm)
Tire Size Ag1 4WD Front: 9.5 - 20/6; Ag1 4WD Rear: 14.9 - 28/6; Turf1 4WD Front : 29 x 12.5 x 15/6; Turf1 4WD Rear: 44 x 18 x 20/4; Ind1 4WD Front: 14 x 17.5/6; Ind1 4WD Rear: 18.4 x 24/8
