2009 Kioti DK75
Request a Quote Financing Calculator Request a Brochure Financing Form

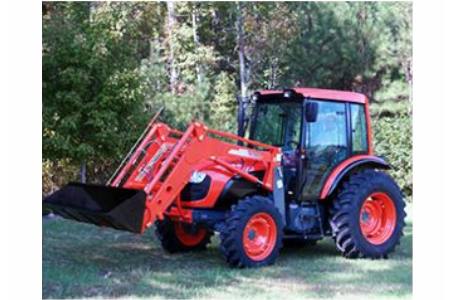

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Environmentally Friendly Engine
  • PTO (540): Various implements can be attached to the PTO at 540 rpm.
  • Independent PTO/AUTO PTO: Even while driving, various work can be done by the Independent PTO. The Auto PTO stops automatically when implement rises up to specific height. It also protects the tractor and implement and reduces noise/vibration.
  • 12x12 Synchronized Transmission
  • Hydraulic port: Single remote hydraulic standard
  • Power steering: The high efficiency power steering offers hours of comfortable, low fatigue operation.
  • MLS Valve: The MLS valve allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.
  • Deluxe Cabin: Equipped with a sunroof, air conditioner, heater, casette and accessories, the KIOTI deluxe cabin gives the owner luxury and pleasant work environment. Furthermore, a flat deck maximizes the convenience.
  • Tilt steering: To fit the required specifications of each user, the steering wheel is adjustable.
  • 3 Point hitch: With an adjustable right side lift rod and top link, you can easily attach implements. The LB1914 out lifts any other tractors in its class because of its heavier and longer body.
  • Centralized Instrument Panel: On the centralized instrument panel, you can easily monitor engine/mechanical performance.
  • Lift control lever: User is able to conveniently attach and detach implements by using the lift cotrol lever.
  • Air conditioner/Heater: A combined heater & air conditioner system is appropriate for and durable in any weather conditions. The inner/outer converting device and filter gives you a pleasant ride.
  • Air Filter: The air filter cartridge protects the engine from the harmful particles and prolongs the life of the engine.
  • Multiple Position Stabilizer: The multiple position stabilizer adjusts lift arms to a wide range of attachments and allows for easy adjustments based on the job at hand.
  • Hydraulic 4WD: In comparison with manual type, 4WD Push Button allows you to engage 4WD while in operation.
  • 4WD with differential Lock: The 4WD guarantees powerful traction, performance and durability. A rear wheel differential lock pedal can be applied to increase traction by locking the rear differential.
  • Rear Implement Control Lever: The 3-point hitch can also be controlled from the ground at the rear of the tractor. Attaching implements is easier and safer with this control within easy reach.
  • Flip-up PTO Guard: The PTO guard flips up so you can install the implement's drive shaft with ease.
  • High capacity fuel Tank: High capacity (33 gals.) fuel tank allows for longer working hours without refueling.
Engine
  • Engine Model: 1104D4-44T
  • Engine Gross Power: 74 HP (55.5 Kw)
  • Rated Speed: 2,200 rpm
  • No. of Cylinder: 4
  • Fuel Type: Diesel
  • Aspiration: Turbocharged
  • Displacement: 268.5 cu.in. (4400 cc)
  • Fuel Tank Capacity: 33 gals. (125 l)
  • Pre-heating System: Intake Heater
Transmission
  • Transmission Type: Manual
  • Shuttle: Fully Synchronized
  • Main Gear: Synchronized
  • No. of Travel Speed Forward / Reverse: 12F/12R
  • Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 1.09 mph
  • Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 19.37 mph
Power Take-Off
  • PTO Type Trans: Rear, Hydrostatic, Independent
  • PTO Power: 58.4 HP (43.5 Kw)
  • Rear PTO Speeds (1st): 540 rpm
Brakes and Clutch
  • Brakes: Hydraulicw/Wet Disc
  • Clutch: Dry Single Plate
Dimensions w/ AG Tire
  • Length w/ 3-point hitch: 159.8 in.
  • Width: 78.7 in.
  • Height from Top of ROPS Cab: 111.0 in.
  • From Top of the Highest Point: 111.0 in.
  • Wheelbase: 90.7 in.
  • Ground Clearance: 17.2 in.
  • Front Tread Ag Tires - Min: 59.7 in.
  • Front Tread Ag Tires - Max: 67.6 in.
  • Rear Tread Ag Tires - Min: 61.6 in.
  • Rear Tread Ag Tires - Max: 77.5 in.
  • Turning Radius w/ Brake: 148.8 in.
Hydraulics
  • Total Pump Flow: 19.17 gpm
  • Main Pump Capacity: 12.3 gpm
  • Power Steering Pump Capacity: 9.8gpm
3-Point Hitch
  • Standard Category (Optional Category): 2(1)
  • Lift Capacity, 24 in. aft of hitch: 5,290 lbs. (2,400 kg)
  • Control Type: Position, Draft and Mixed
Weight
  • Weight w/ Ag Tires w/ Cab: 7,749 lbs. (3,515 kg)
Standard Equipment
  • Telescopic 3 Point Hitch Ends
  • Telescopic Stabilizers
  • Crank Adjustable Lift Link
  • Side Mount Hydraulic Couplers
  • One Lever Joy Stick for Loader
  • Operation
  • Foldable ROPS with Seat Belt
  • Hydraulic Power Steering
  • Rear Differential Lock
  • Hydraulic Brakes
  • Hand & Foot Throttles
  • Adjustable Drawbar / Adjustable Seat
  • Head Lights / Safety Lights
  • Safety Start Switch
  • Front & Rear Working Light
  • Single Remote Hyd. Valves (Detent, Floating)
  • Single Element Air Cleaner
  • Tilt Steering Wheel
  • Oil Cooler
Optional Equipment
  • 2nd & 3rd Remote Hyd. Valve
  • Front Weights
  • Rear Sub Cylinder
  • Cooler
  • Rear Wiper
  • AM/FM Radio CD Player
Instrument Panel
  • Tachometer with Hour Meter
  • Temperature Gauge
  • Fuel Gauge
  • PTO on Indicator
  • Oil Pressure Indicator
  • Low Fuel Indicator
  • Battery Charge Lamp
  • Glow Plug Indicator
  • Low Coolant Indicator
  • Hydraulic Filter Lamp
  • 4WD Indicator
Tires
  • Ag1 4WD Front: 11.2 X24
  • Ag1 4WD Rear: 16.9 X30
Attachments
  • Front End Loaders: KL901
Implements
  • Mowers: KMR03-72, KMR03-84
  • Tillers: KT09-73

Specifications

Engine
Engine Type 4 Cyl., In-line Vertical, Water-Cooled 4-Cycle Turbo Diesel Engine
Horsepower 74 HP (55.5 Kw)
PTO HP 58.4 HP (43.5 Kw)
Rated RPM 2,200 rpm
Specifications
Wheelbase 90.7 in.
Height 111.0 in.
Width 78.7 in.
Weight 7,749 lbs. (3,515 kg)
Ground Clearance 17.2 in.
Tire Size Ag1 4WD Front: 11.2 X24; Ag1 4WD Rear: 16.9 X30
General
Fuel System Diesel
Fuel Capacity 33 gals. (125 l)
Transmission Manual
Brakes Hydraulic w/Wet Disc
Hydraulics Total Pump Flow: 19.17 gpm; Main Pump Capacity: 12.3 gpm; Power Steering Pump Capacity: 9.8 gpm

Compare Models

 Print








Year 2009
Manufacturer Kioti
Model DK75
Style Compact
Engine
Engine Manufacturer
Engine Type 4 Cyl., In-line Vertical, Water-Cooled 4-Cycle Turbo Diesel Engine
Horsepower 74 HP (55.5 Kw)
PTO HP 58.4 HP (43.5 Kw)
Rated RPM 2,200 rpm
Bore and Stroke
General
Fuel System Diesel
Fuel Capacity 33 gals. (125 l)
Transmission Manual
Brakes Hydraulic w/Wet Disc
Hydraulics Total Pump Flow: 19.17 gpm; Main Pump Capacity: 12.3 gpm; Power Steering Pump Capacity: 9.8 gpm
Drive Type
Specifications
Wheelbase 90.7 in.
Height 111.0 in.
Width 78.7 in.
Weight 7,749 lbs. (3,515 kg)
Ground Clearance 17.2 in.
Tire Size Ag1 4WD Front: 11.2 X24; Ag1 4WD Rear: 16.9 X30
