2009 Gravely Pro-Stance™ 1934 FX
Request a Quote Financing Calculator Request a Brochure Financing Form

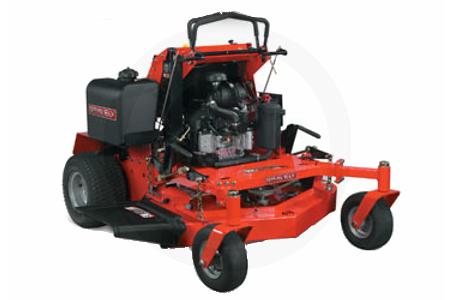

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

At first glance it’s obvious…some different thinking went into the design and engineering of the Gravely® Pro-Stance™ Zero-Turns. Once you step aboard…work the controls…then overlook a beautifully manicured landscape that took what seemed like just minutes to cut, you’ll begin to understand. Thinking differently makes it so much easier to get a lot more done…in a lot less time…which in turn generates a lot more revenue.

    Specifications
    • Warranty: 2 year
    • Engine Manufacturer: Kawasaki®
    • Engine Power: 19 hp
    • Drive System: Hydrostatic
    • Fuel Tank: 5 gal. (18.9 l)
    • Ground Speed MPH (Forward/Rev): 9 mph/4 mph
    • Starter: Electric
    • Deck Material: 7 ga
    • Deck Construction: Welded
    • Number of spindles: 2
    • Blade Tip Speed: 18,000 fpm
    • Spindle Material: Ductile Cast Iron
    • Spindle Shaft: 1 in. Steel
    • Spindle Bearings: Sealed Ball Bearing
    • Deck Drive: Belt
    • Deck Engagement: Ogura® 87 ft.-lb. Electric Clutch
    • Deck Lift System: Manual
    • Cutting Width: 34 in.
    • Cutting Heights: 1.5 in.-4.5 in.
    • Cutting Positions: 7
    • Front Axle: Rigid
    • Front Wheels: 11 in. x 4-5 in.
    • Rear Wheels: 18 in. x 6.5-8 in.
    • Safety: ANSI
    • Hour Meter: Standard
    • Weight: 830 lbs.
    • Length: 58.5 in.
    • Width: 47 in. Chute down/35 in. Chute up
    • Height: 47 in.
    Drive Train System
    • Hydro-Gear® 10 cc pumps and 12-cubic in. wheel motors
    • 9.0 mph fwd ground speed
    • 11 in. diameter ribbed front tires
    • 18 in. rear tires
    • Mechanical compression-style parking brake
    Deck Design
    • 7-gauge fabricated and welded steel construction
    • Grease-able spindles
    • Heavy-duty plastic side discharge chute for less damage to surrounding environment
    • Manually operated deck lift with 1 in. to 4.5 in. height of cut with 8 settings
    Operator Ergonomics
    • Thermoplastic Elastomer Spring Platform for cushioned comfort and support
    • Adjustable dual handle controls
    • Large diameter fuel cap for quick refueling
    Frame Design
    • Fully fabricated and welded construction
    • 7-gauge steel
    Accessories
    • Mulching Kit
    • Gravely Wheel Covers

    Specifications

    Engine
    Engine Manufacturer Kawasaki®
    Horse Power 19 hp
    General
    Transmission Hydrostatic
    Wheel Size Front Wheels: 11 in. x 4-5 in.; Rear Wheels: 18 in. x 6.5-8 in.
    Fuel Capacity 5 gal. (18.9 l)
    Deck
    Deck Size 34 in.
    Discharge Type Side; Optional: Mulch Kit

    Compare Models

    		 Print








    Year 2009
    Manufacturer Gravely
    Model Pro-Stance™ 1934 FX
    Style Riding
    Deck
    Deck Size 34 in.
    Discharge Type Side; Optional: Mulch Kit
    Engine
    Engine Manufacturer Kawasaki®
    Horse Power 19 hp
    Engine Type
    Displacement
    General
    Transmission Hydrostatic
    Wheel Size Front Wheels: 11 in. x 4-5 in.; Rear Wheels: 18 in. x 6.5-8 in.
    Fuel Capacity 5 gal. (18.9 l)
