Stronger and more productive by design


Top-of-the-line T5000 Series utility tractors add new meaning to the phrase "value added." These 70- to 96-PTO horsepower tractors are built with stronger components and heavier construction to outlast other tractors of similar horsepower. T5000 tractors excel in tough hay conditions and harsh roadside mowing applications where lighter-weight tractors simply can't cut it.


Take a look at these heavy-duty features:
Larger, heavier 10,141-pound capacity rear axle offers over 1,700 pounds more capacity than most competitors.
The larger, heavier New Holland front axle easily handles the everyday strain of heavy loader work and other axle-taxing conditions. The increased load capacity of 9,920 pounds is over 3,700 pounds more than most competitors.
The heavier overall weight of T5000 tractors means you won't be pushed around by the weight of a round baler or heavy "batwing" mower-even on slopes.
Wide wheel settings up to 84 inches provide added stability on hills.
The long T5000 wheelbase further improves stability and gives you a smooth ride.


Standard models offer high-productivity features with additional conveniences available as options.
2WD or FWD
Open platform or cab
Standard 12 x 12 synchro command transmission
Optional 12 x 12 synchro command power shuttle transmission (standard on the T5070)
Standard mechanical shuttle (optional power shuttle)
Standard open-center remotes (optional closed-center)
Standard mechanically engaged PTO with mechanical shuttle (electrohydraulic PTO with power shuttle option).


Deluxe models take productivity to the next level with convenient, high-efficiency features including:
FWD only
Open platform or cab
24 x 24 Dual Command transmission
Power shuttle
Closed-center rear remotes with independent flow control
Electrohydraulic control of FWD and differential lock
Electrohydraulically engaged, multi-plate wet PTO clutch pack
Fender-mounted control switches.


An interchangeable 540/1000-rpm PTO (540-rpm only on the T5040) powers hay equipment, forage blowers, feed wagons and mixers. Electrohydraulic PTO engagement is standard on models equipped with power shuttle transmission and optional on models with mechanical shuttle.


Convenient fender-mounted PTO switch (Deluxe models) stops the PTO with one touch, and makes it easy to attach and engage implements from the ground.

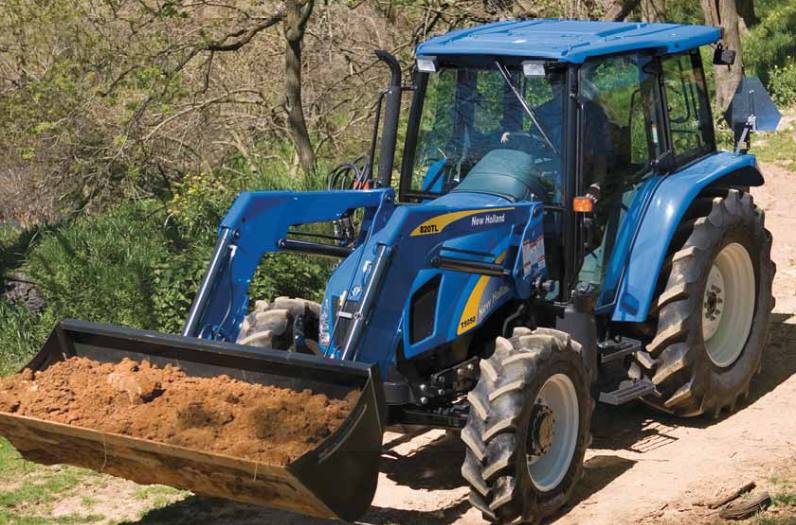

Add a New Holland front loader to cut material-handling jobs down to size. Choose the high-performance 830TL loader or economical 820TL loader. A new combining valve uses available flow from the steering pump to provide up to 21 gpm for faster loader operation.


Engine


State-of-the-art T5000 Series engines are tough on work but friendly to the environment. These 274-cubic inch displacement, four-cylinder engines are larger displacement than most competitors for responsive power. All T5000 engines are turbocharged and intercooled for maximum fuel efficiency and power response.


B100 approved! As the biodiesel clean-energy leader, New Holland approves the use of farmer-grown B100 for all T5000 tractors.* By using clean-burning, environmentally friendly, biodiesel fuel you contribute to:
Cleaner air from reduced emissions
Reduced imports of foreign oil
The creation of new jobs and a boost for the economy
Increased demand for soybeans and other farm products used to produce biodiesel.


A low, 2300-rpm rated engine speed further reduces engine wear, vibration and noise.


A torque response of up to 47% assures you of ample power to climb grades, pull through difficult soil conditions, or run hay and harvesting equipment efficiently in heavy crop conditions.


The computer-designed, parent-bore cylinder block serves as an integral structure of the tractor and includes an integrated water pump and oil cooler. Compared to previous models, the T5000 engine block is even thicker and heaver for reduced noise and vibration.


Nozzles positioned under the piston flood the area with pressurized oil from the crankshaft to disperse heat and lubricate the cylinder walls. Due to this efficient method of cooling, the tolerances between the piston and cylinder wall can be reduced, eliminating piston slap for a quieter start-up.


Cross-flow cylinder head design keeps intake air cool and dense for superior combustion and excellent fuel economy.


A single poly V-belt powers the fan, alternator and water pump and provides proper tensioning and longer belt life.


The standard grid heater preheats air before it enters the chamber for quick, reliable starts in temperatures as low as -25 degrees C.


Transmission


No matter which model or configuration you choose, T5000 transmissions are designed for easy forward/reverse shuttling and offer a broader selection of working speeds than you get with other tractors. In-line, left-hand shuttle is standard on all T5000 tractors to free your right hand for operating the loader joystick.


T5000 Standard Models


12 x 12 Synchro Command™ transmission with mechanical shuttle or optional power shuttle (standard on the 5070)


Four gears in each of three ranges (instead of only three on some other tractors) mean you have less need to shift between ranges.


Seven gears in the 2- to 9-mph working range allow you to select the perfect working speed for each job.


Optional 20 x 12 creeper transmission with mechanical (not available on T5070 Standard) offers seven speeds under 1 mph for low-speed applications.


T5000 Deluxe Models


24 x 24 Dual Command™ transmission with power shuttle


A push-button powershift in each of the 12 synchronized, overlapping gears gives you double the speed choices.


Downshift with the touch of a finger to instantly decrease ground speed by 15% and increase torque 18% without interrupting power-perfect for when you haul heavy loads or hit a tough spot in the field.


A top ground speed of 25 mph on FWD models and 19 mph on 2WD models lets you move between jobs fast.


Clutchless power shuttle lever (standard equipment on Deluxe models, optional on Standard models) is located to the left of the steering wheel and allows you to shuttle from forward to reverse with your fingertips without removing your hands from the wheel. The power shuttle package also includes a fully independent hydraulic wet clutch PTO system with electrohydraulic engagement, hydraulic oil cooler and pressure lubrication for the transmission.


Speed and range levers are located conveniently to your right and are easy to reach.


Hydraulics


A flexible, high-capacity hydraulic system sets T5000 tractors apart. Big flow and fast cycle times result from a proven, dual-pump hydraulic system that delivers total tractor flow of 26.5 gpm.


A dependable 16.1-gpm hydraulic gear pump provides hydraulic power to the remotes and three-point hitch.


A separate steering pump provides 10.4 gpm to the hydrostatic steering system.


A new combining valve on the steering pump automatically sends excess flow to the optional mid-mount loader valve with joystick, providing up to 21 gpm of hydraulic flow for faster loader operation.


Up to three closed-center rear remote valves are available on Deluxe T5000 models and optional on Standard T5000 models. Independent flow control on the first two remotes allows you to use multiple remotes at the same time. Open-center remotes are standard equipment on Standard models.


Hydraulic control levers are conveniently located next to the right side of your seat.


The flow control adjustment knob (closed-center valves only) is positioned outside the rear window on cab models or behind the seat on open-deck models, where you can easily make adjustments from the operator station or from ground level.


An optional monoblock mid-mount loader remote valve with a dedicated joystick control accommodates a loader. These independent valves free up the rear remotes for other functions.


The highest standard three-point lift capacity in this power class-5,745-pounds-means T5000 tractors can easily handle larger implements.


A whopping 6,805-pound lift capacity can be achieved with the optional dealer-installed lift assist kit.


The Lift-O-Matic™ quick-lift button allows you to instantly raise or lower the three-point hitch-a handy feature not usually offered on other tractors of this size. You pre-set the upper and lower lift position settings.


Telescoping stabilizers and flexible link ends are standard equipment on all T5000 models to make implement hook-up easy.


A mechanical draft control system uses lower link draft sensing to give you total implement control. This system allows for easy implement setup and includes working depth control, load and position control.


Optional rear external three-point hitch control allows you to easily attach implements while standing on the ground.


Cab and Operator Platform


Both the T5000 flat-deck platform and flat-deck cab are the most spacious you'll find in this size tractor, with plenty of leg, hip, shoulder and head room. Both are isolation-mounted to reduce noise and vibration. Steps are located on each side of the tractor for easy access.


Cab


57 square feet of glass includes two, wide, full-glass doors for an unobstructed view. The exhaust is tucked neatly in front of the cab post to further improve visibility.


The lower overall cab height-even though the T5000 cab is the largest on the market-means you can maneuver where others cab tractors can't.


Cab models protect you from the weather and include these comfort and convenience features:
Air conditioning or heat is maintained by an electronically controlled thermostat, so you remain comfortable no matter what the outside temperature.
Two external cab filters keep the air clean and are easy to reach for maintenance.
Both side and rear windows open for fresh air.
A large, lockable toolbox with removable tray is standard. The entire toolbox can be removed to take with you.


Seat Choice


A mechanical suspension seat with foldable armrests and adjustments for height, fore/aft and damping allows a perfect fit for every operator.


An optional air-ride seat provides added comfort with a wide seat cushion, swivel feature, adjustable air lumbar support and an adjustable back rest.


Controls


Clear, easy-to-read instrumentation includes gauges for engine speed, coolant temperature and fuel level, as well as a digital readout of ground speed, clock and warning indicators.


Enhanced keypad on Deluxe models equipped with the 24 x 24 Dual Command™ transmission allows you to view expanded information in the central LCD dashboard display including:
Tractor hours
Distance traveled
Area worked
Area per hour
Digital PTO speed
Battery voltage
Programmed maintenance intervals.


Lighting


A best-in-class lighting package includes two dual-beam halogen headlights as well as two front corner work lights that illuminate the work area to the side and operate independently of the headlights.


Cab tractors feature two additional front roof-mounted work lamps and two rear roof-mounted work lamps. One rear-mounted work light is standard on ROPS tractors. Flashers, turn signals and brake lights are standard on all models.


Service


Serviceability on T5000 Series tractors is second to none. Fast routine maintenance gets you on the job in no time.


Single-piece hood lifts effortlessly on gas struts for unobstructed access to service points, including filters, cooler, battery and radiator.


Long service intervals mean you spend less time and money on maintenance over the years.


Engine oil: 600 hours


Hydraulic oil: 1,200 hours


Engine and hydraulic oil filters: 300 hours.


The easy-access radiator includes a slide-out condenser unit for quick inspection and cleaning.


Engine oil can be checked without raising the hood.


A 33.5-gallon fuel tank on all models keeps fuel fills to a minimum. The low fill point location and wide filler neck makes refueling easier.
